Building the Enclosure

Welcome to hand on vision#

First sketch#

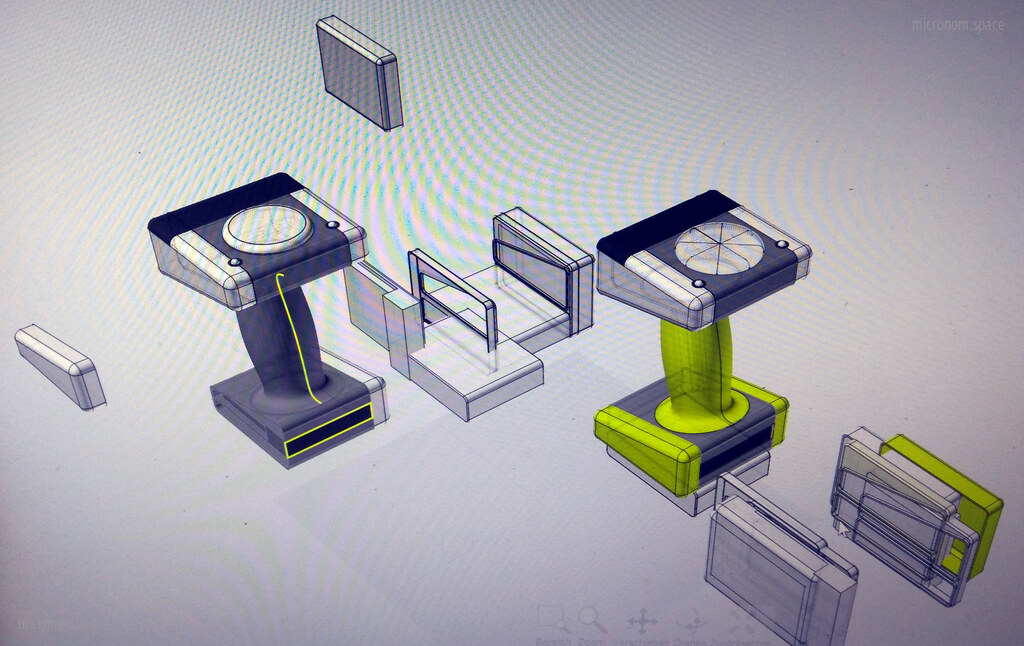

We're very pleased to show you our first sketch of the micronom.

micronom first sketch

First sculpture#

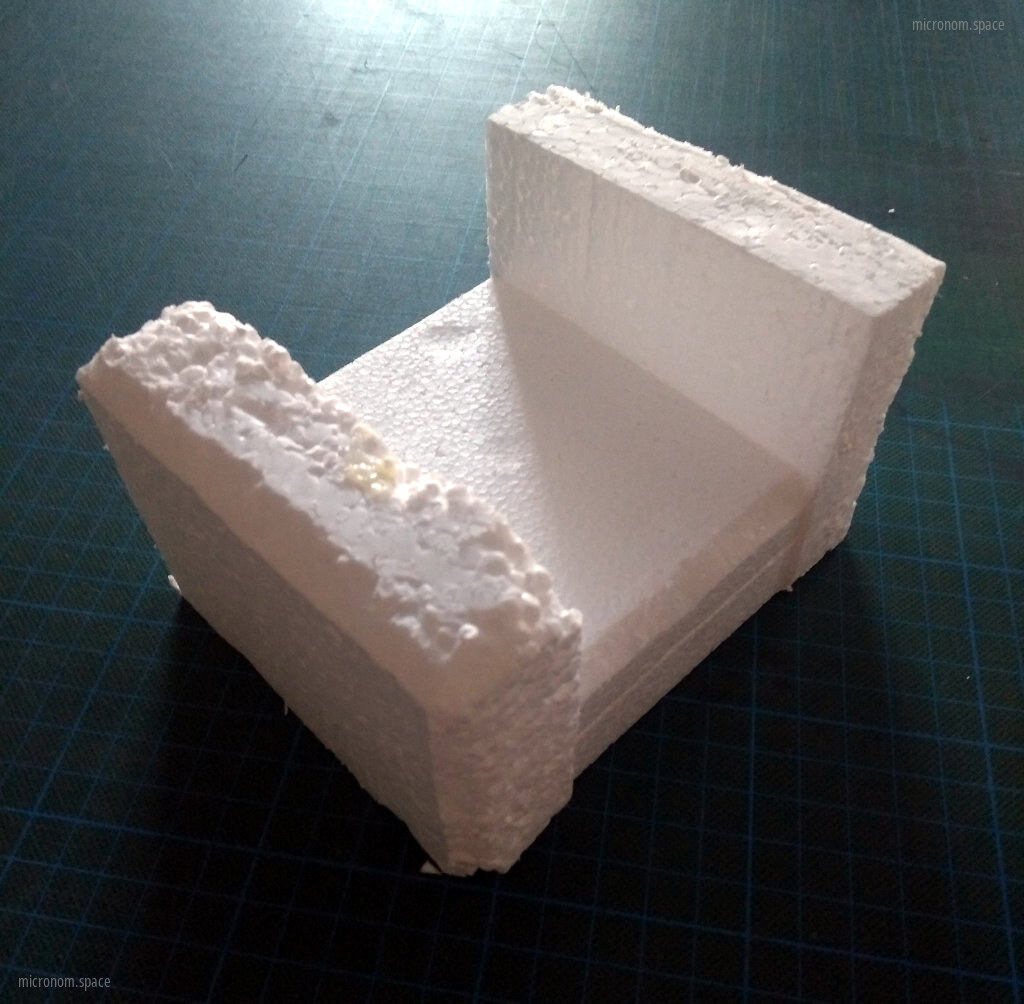

We're very thrilled to show you our first sculpture. The Polystyrene micronom.

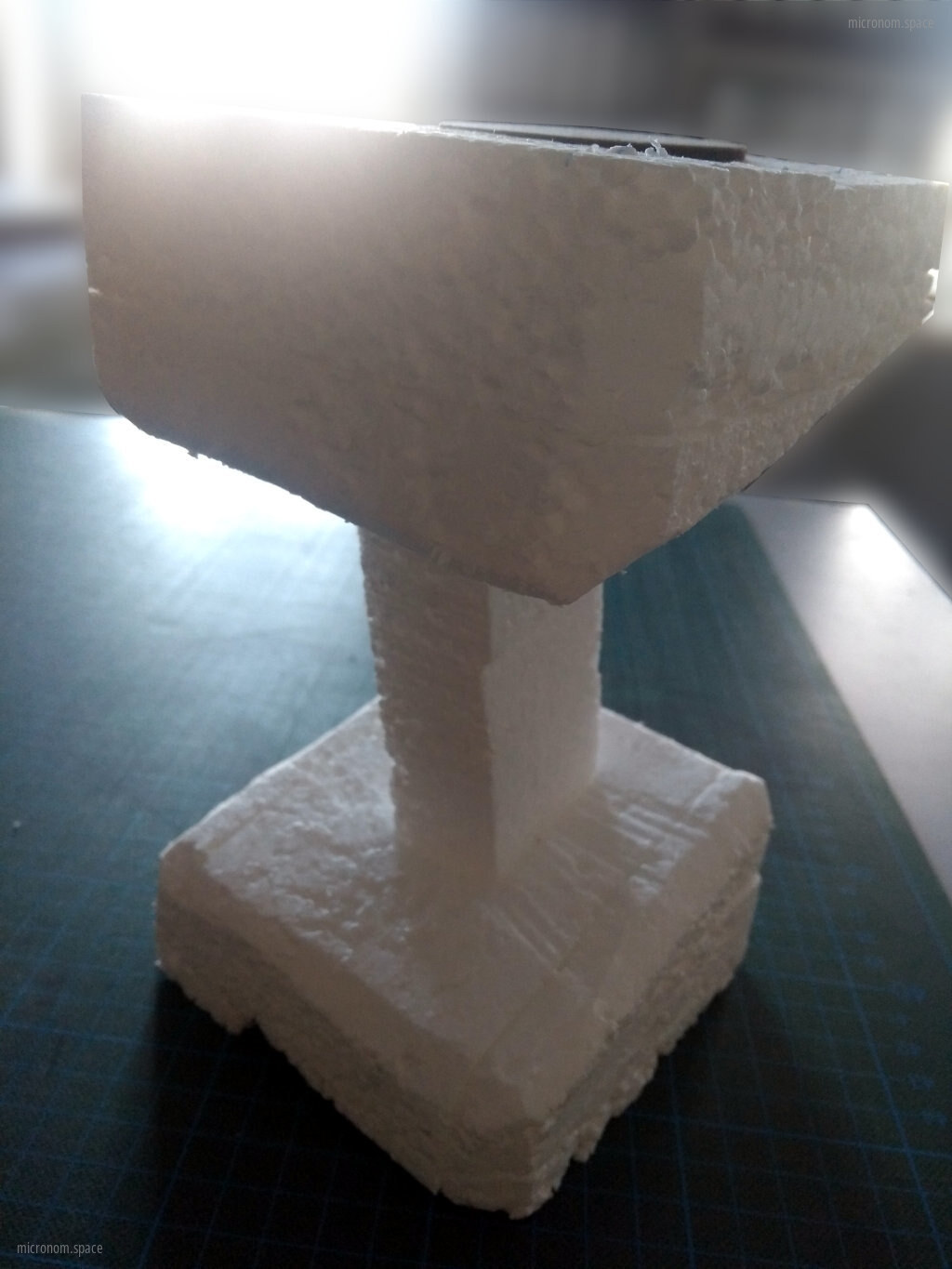

micronom sculpture side view micronom expansion module micronom expansion module

Second sketch#

We did a lot of work on the second sketch, so this is a little bit of an update.

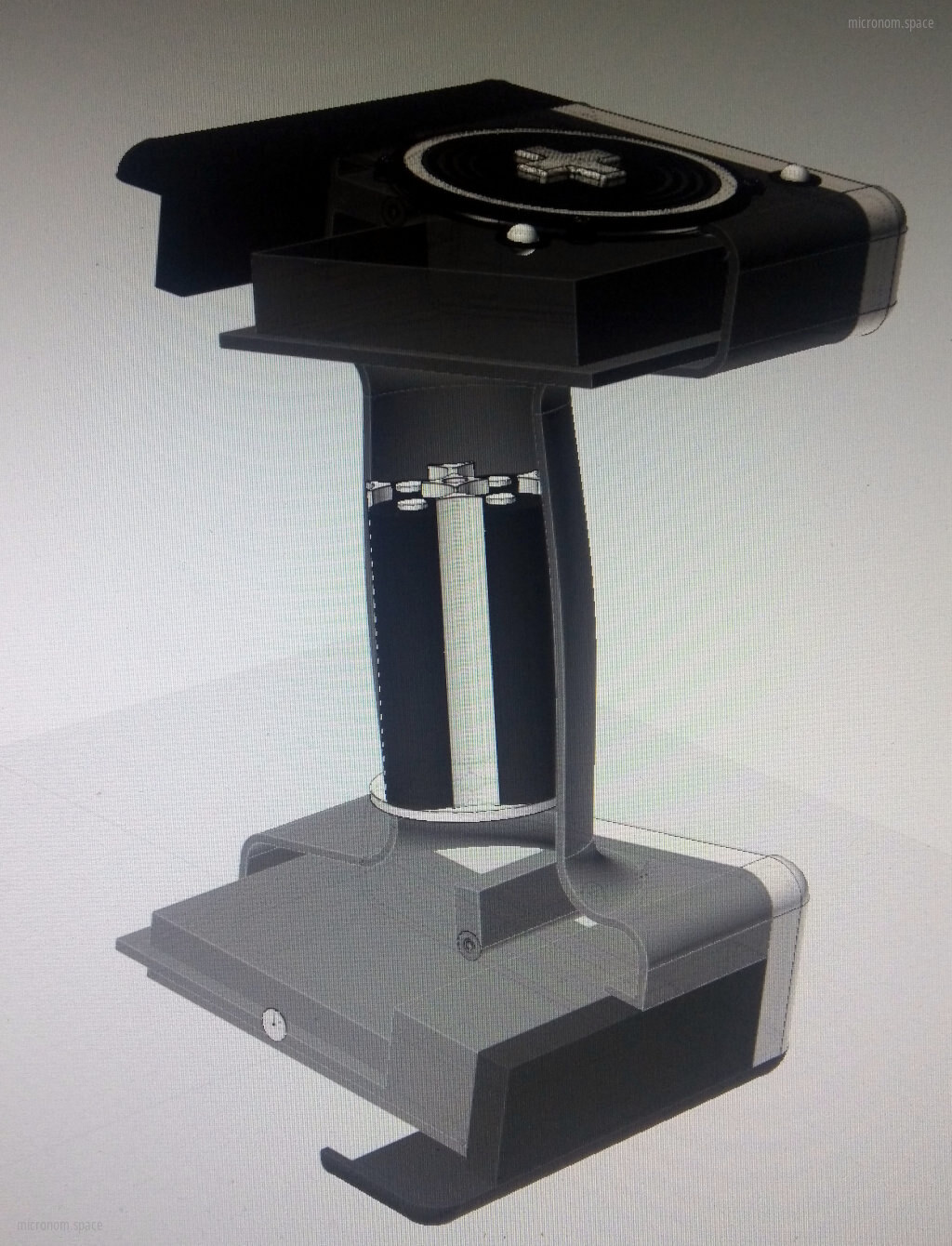

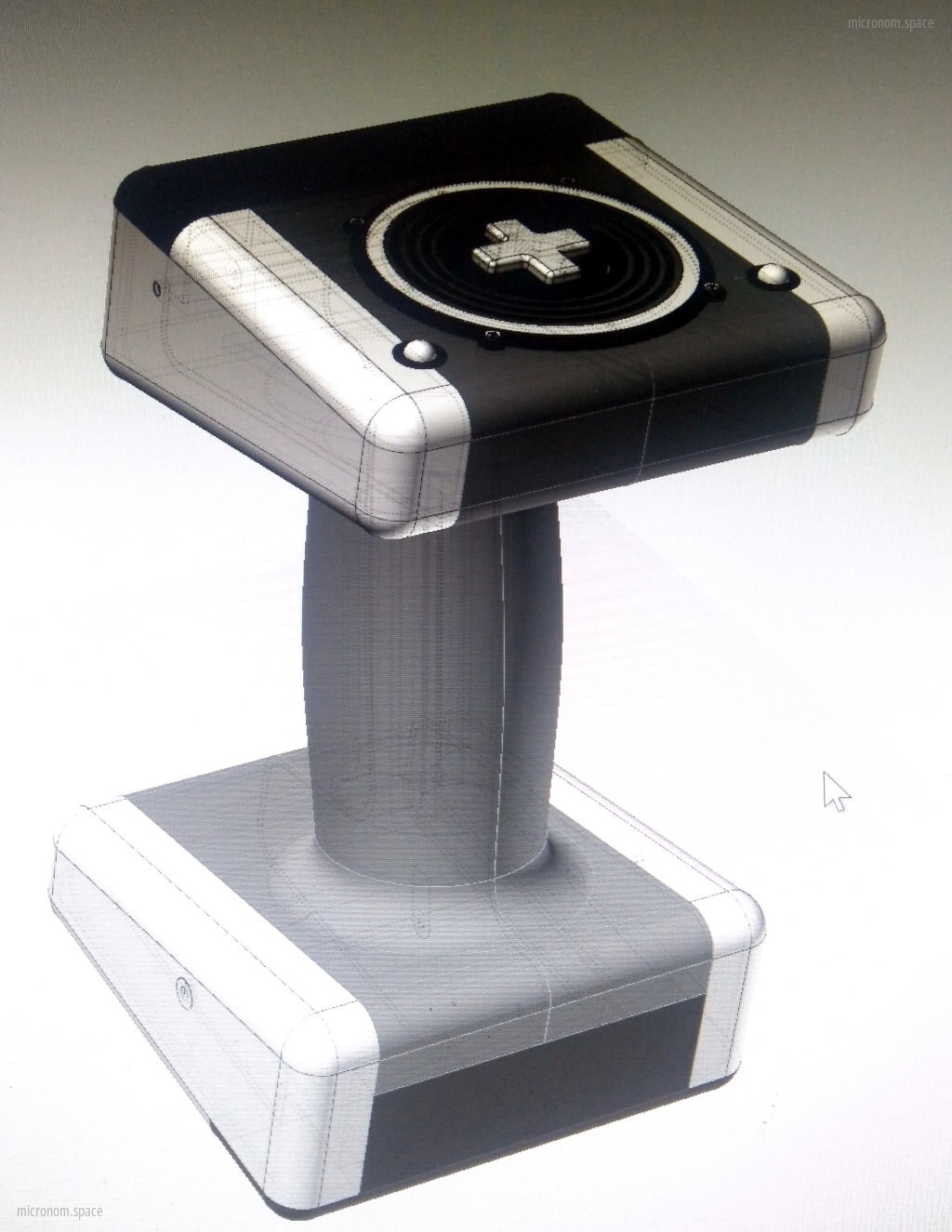

micronom second sketch micronom second sketch batteries included

Microphone controls#

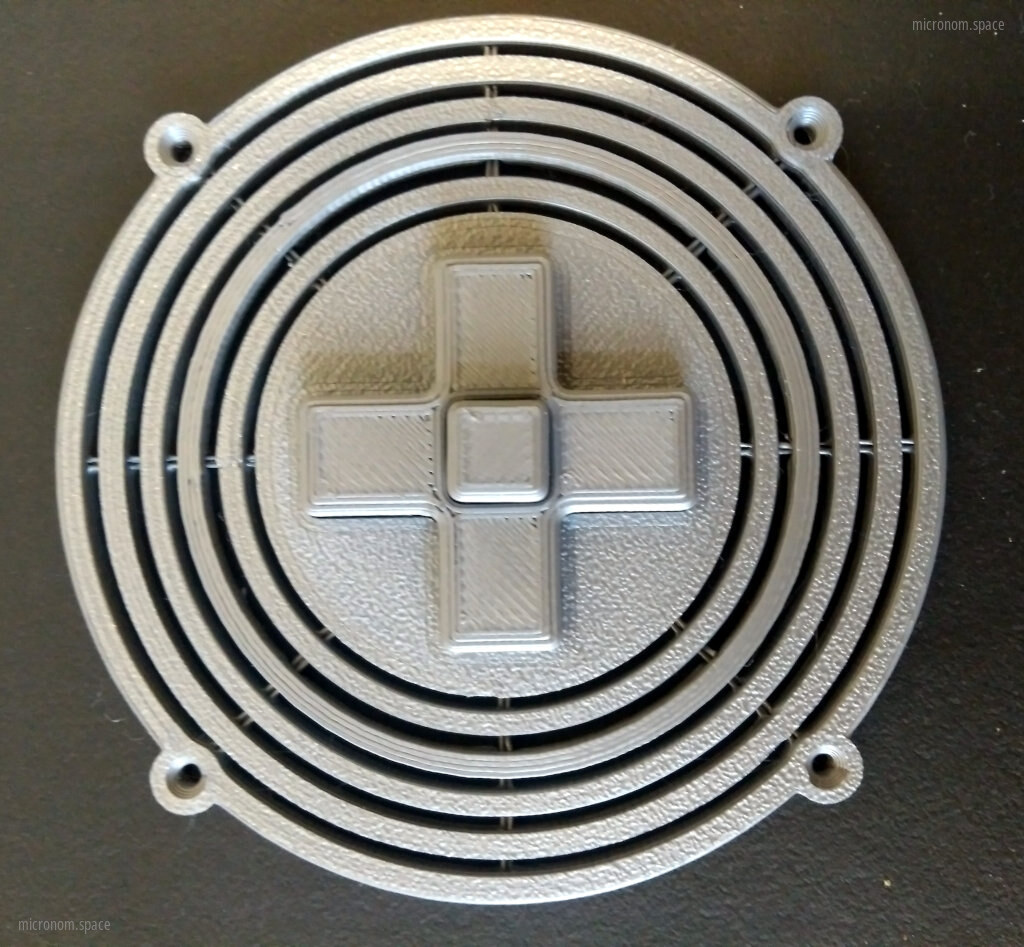

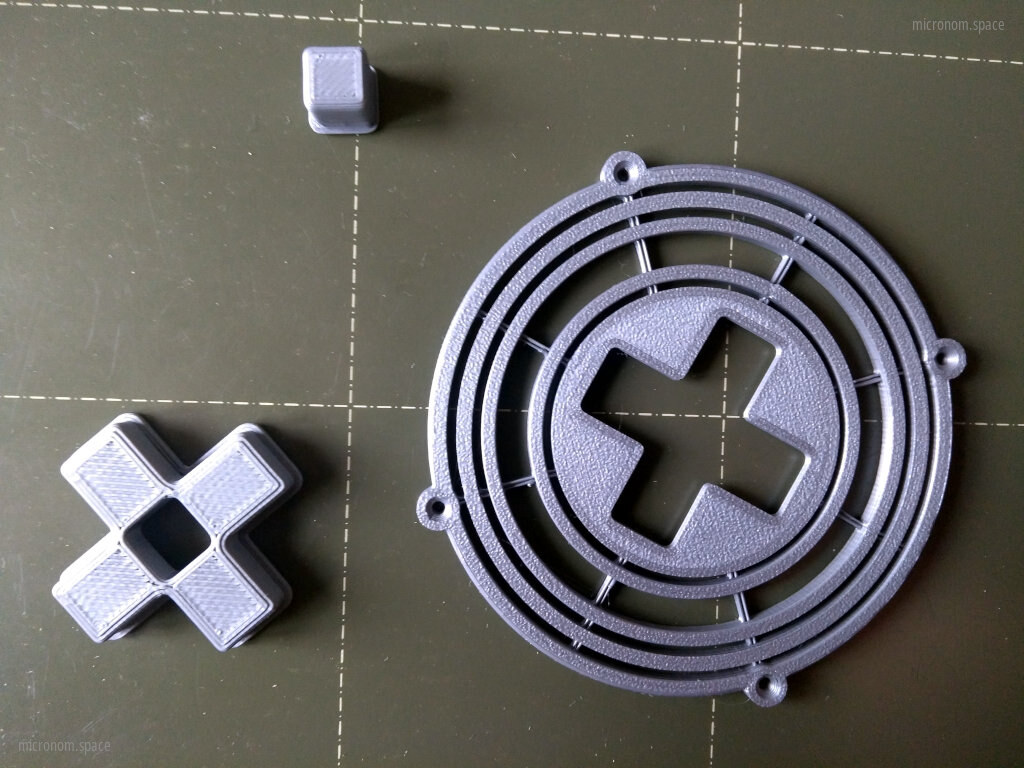

Hooray! We have started to print the components of the micronom enclosure. Here you can see the top microphone cover with its controls.

micronom microphone controls micronom microphone control parts

Expansion module#

Awesome! Micronoms expansion module.

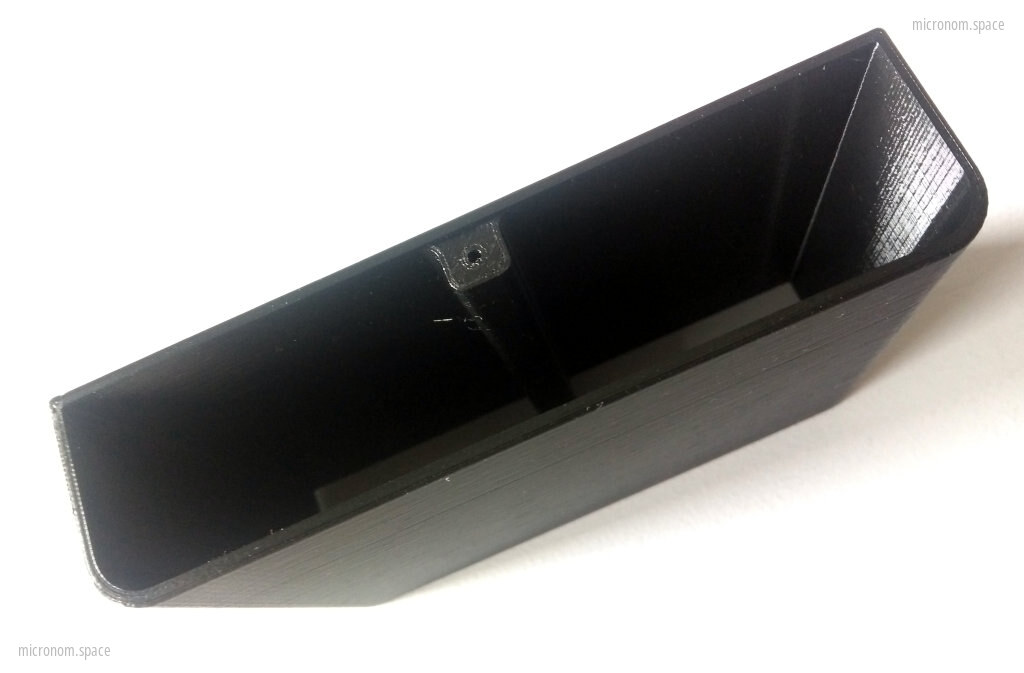

expansion module expansion module

Half of the butt#

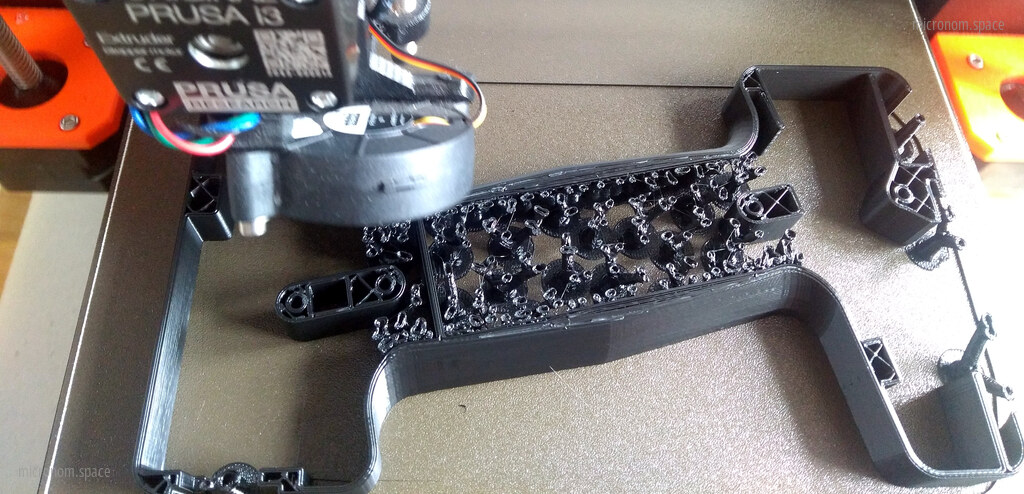

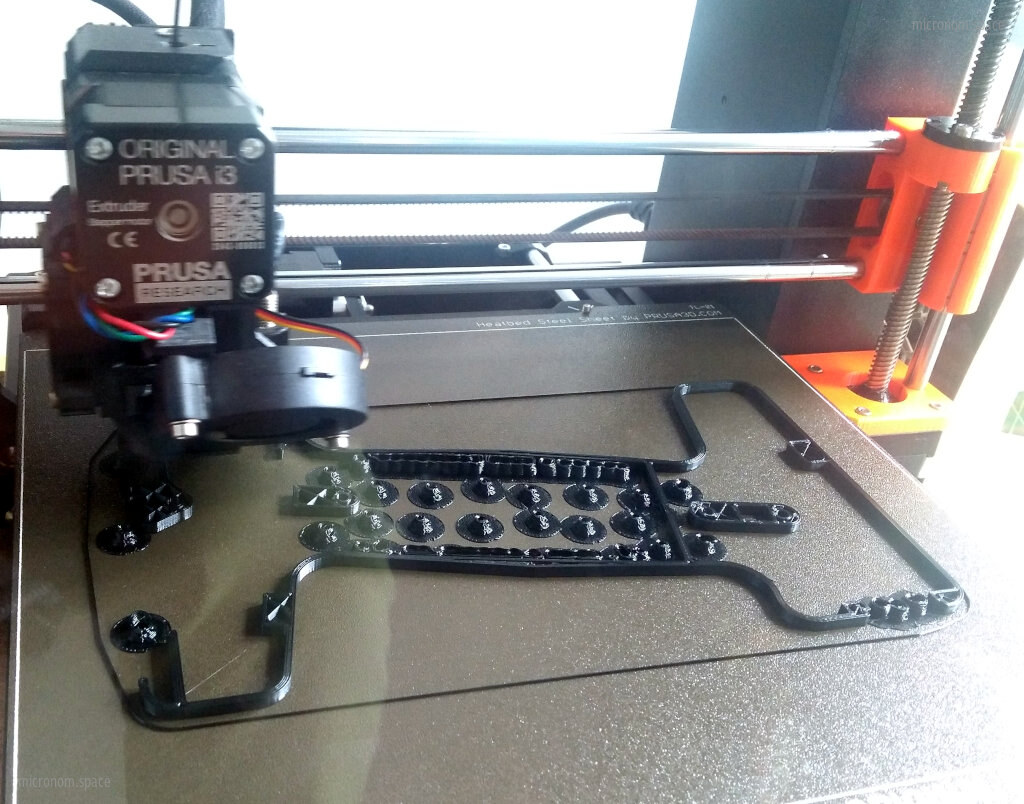

Stunningly beautiful! After 7 hours of 3D printing, we are proud to show you the half of the butt.

Well done!

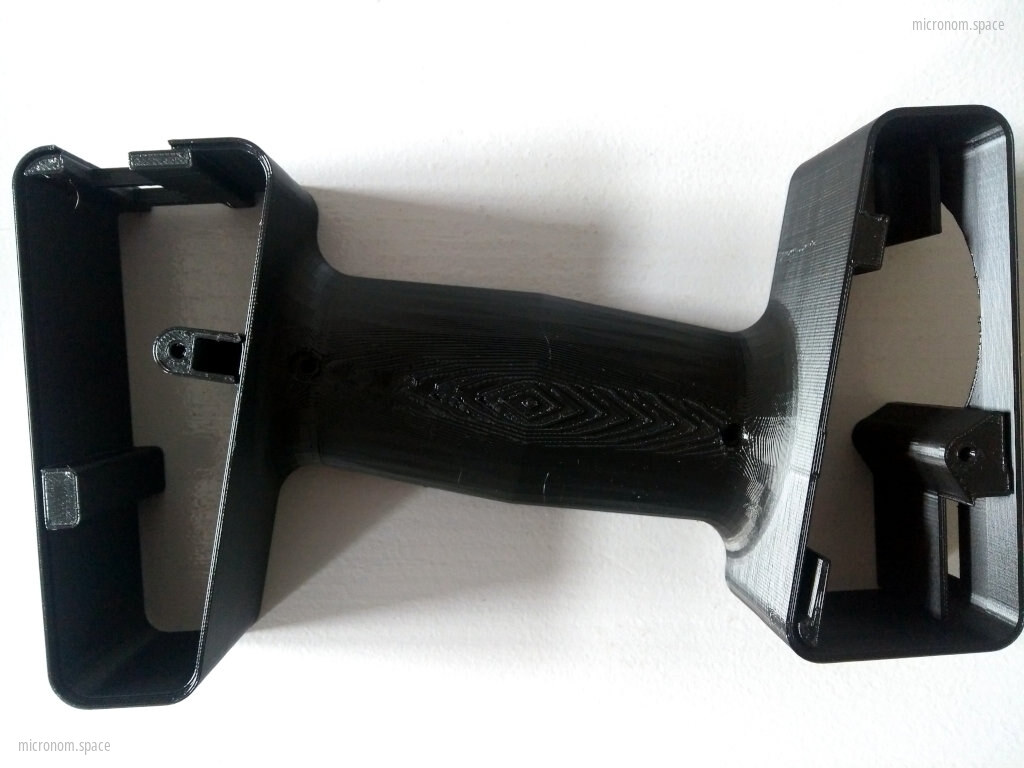

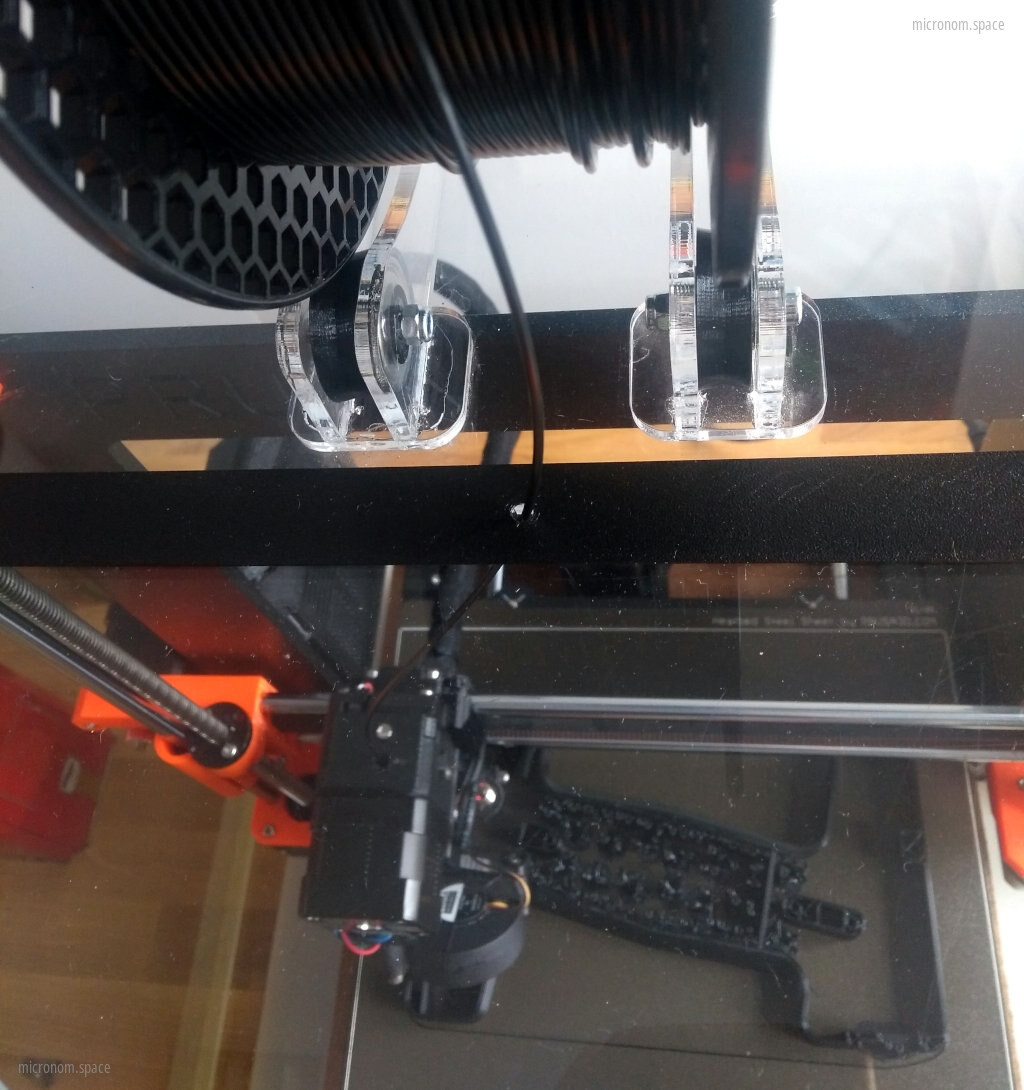

fist layers organic supports top view half of micronoms butt

Second half of the butt#

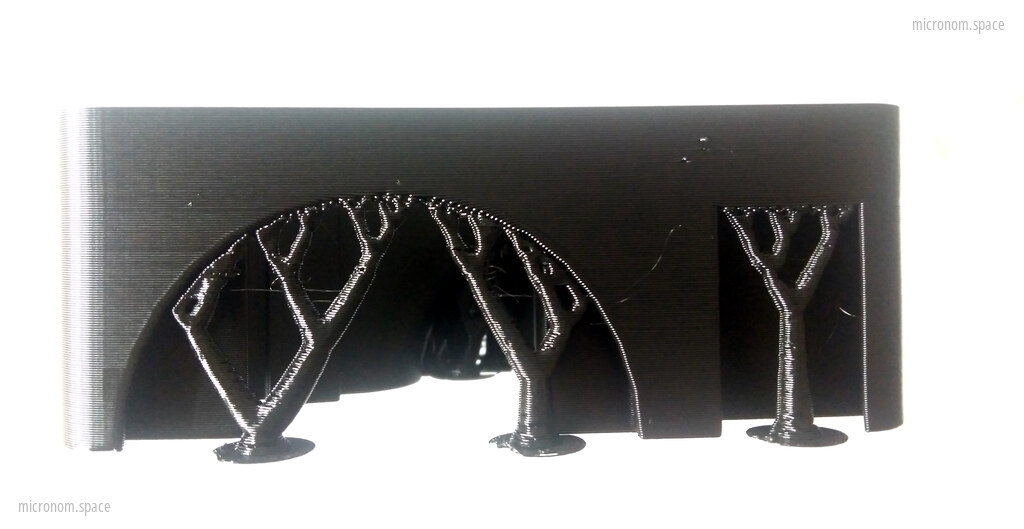

Finally, after 7 hours of 3D printing, we finished the second half of the butt, the main shell. The parts fit together pretty well, but need some fine tuning to just snap into place.

Really amazing!

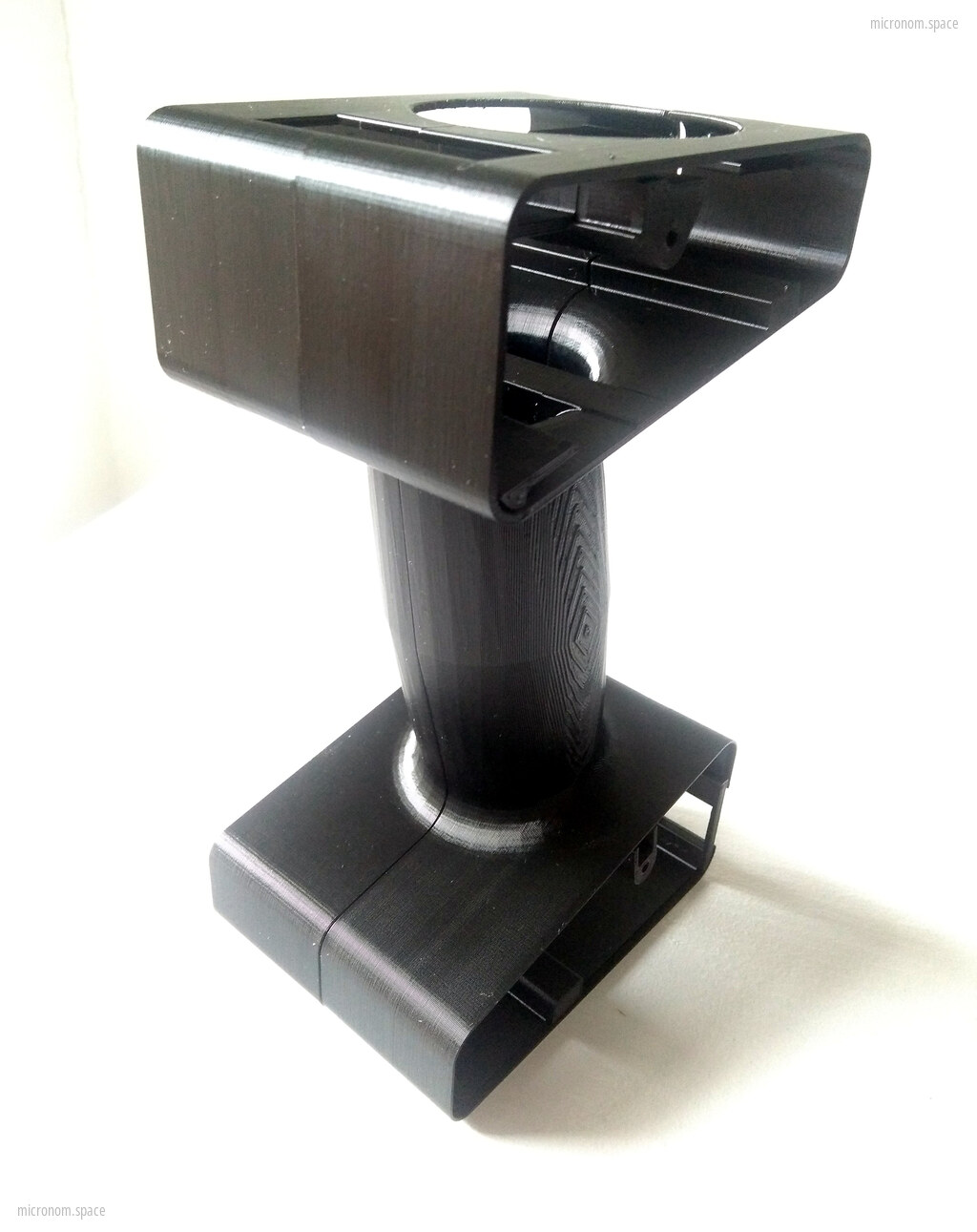

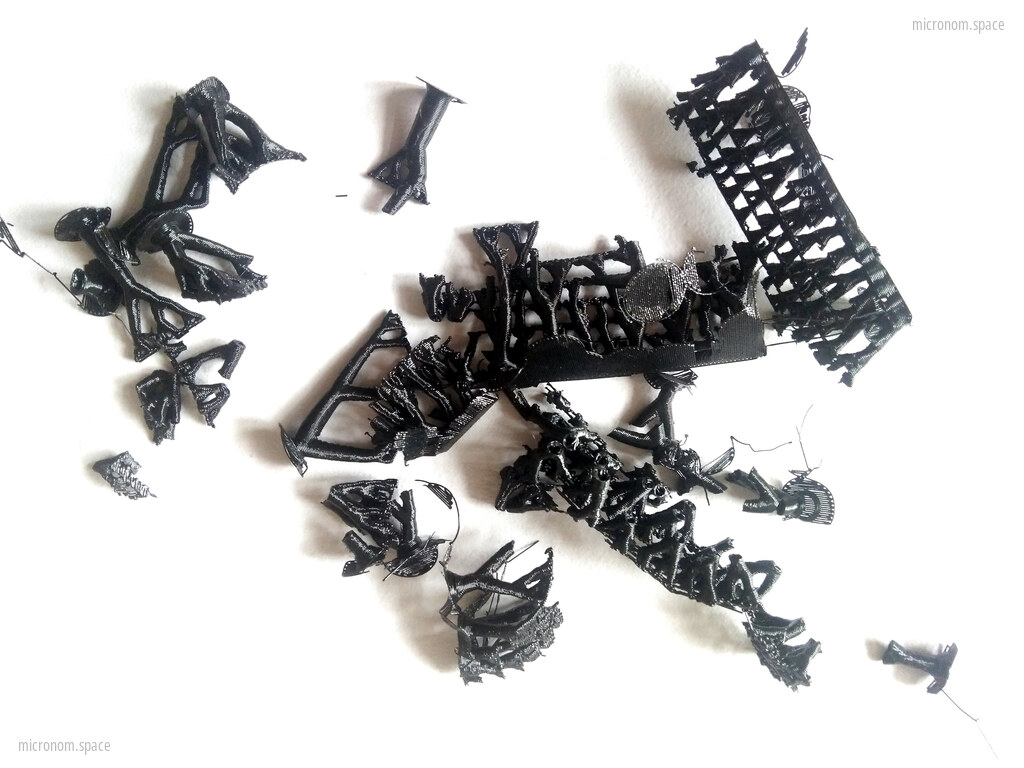

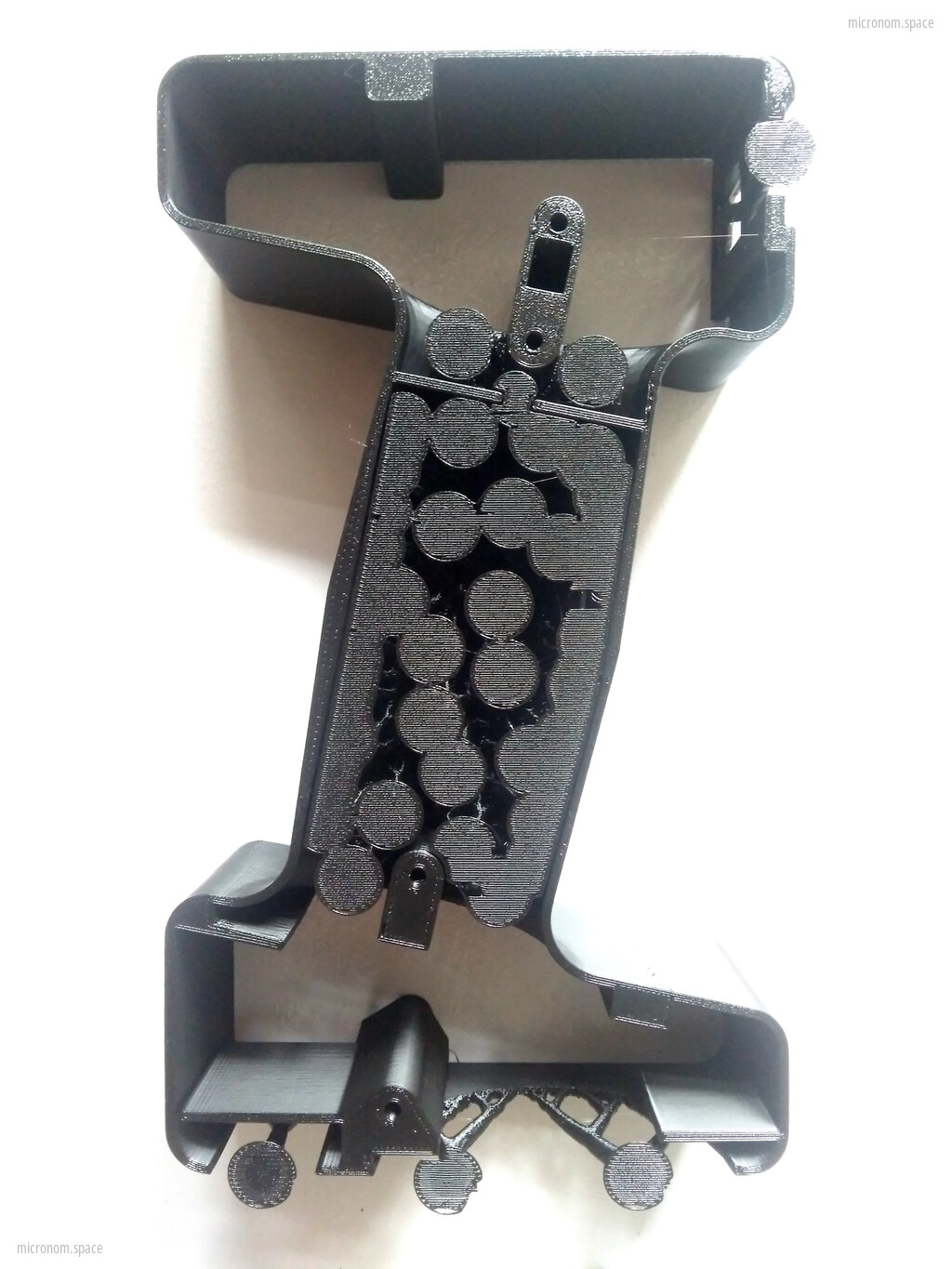

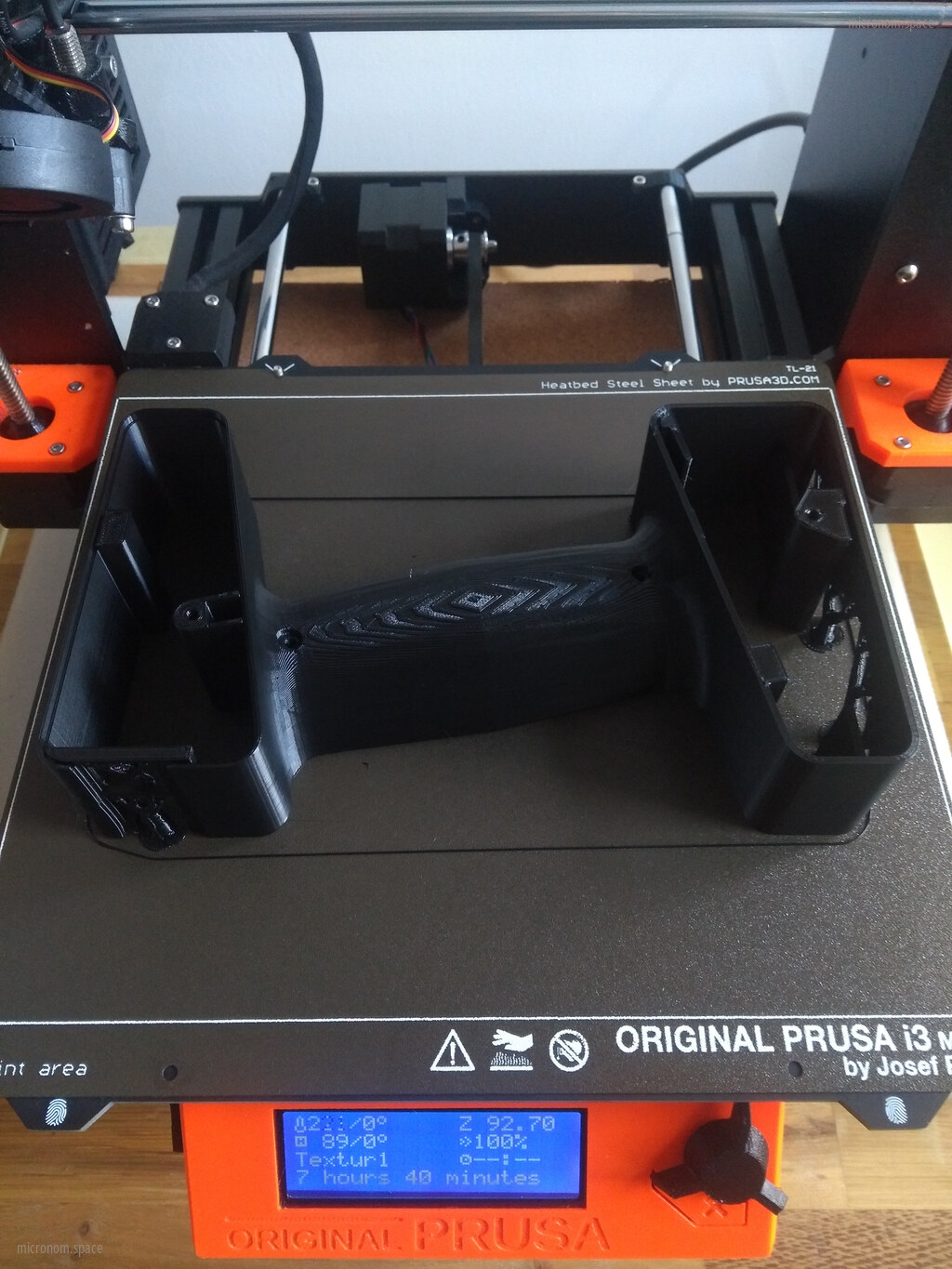

butt on heatbed organic supports more organic supports more organic supports more organic supports the butt

Cover on top!#

Put the lid on! It just fits. Simply brilliant.

The takeaways:
The rounded edges need tweaking.
The supports (grid, snug, organic) were all difficult to remove. It has to work without them.
Printing on the textured sheet shows a more consistent look.

There are a lot of ideas that will go into the next iteration.

All in all, absolutely gorgeous.

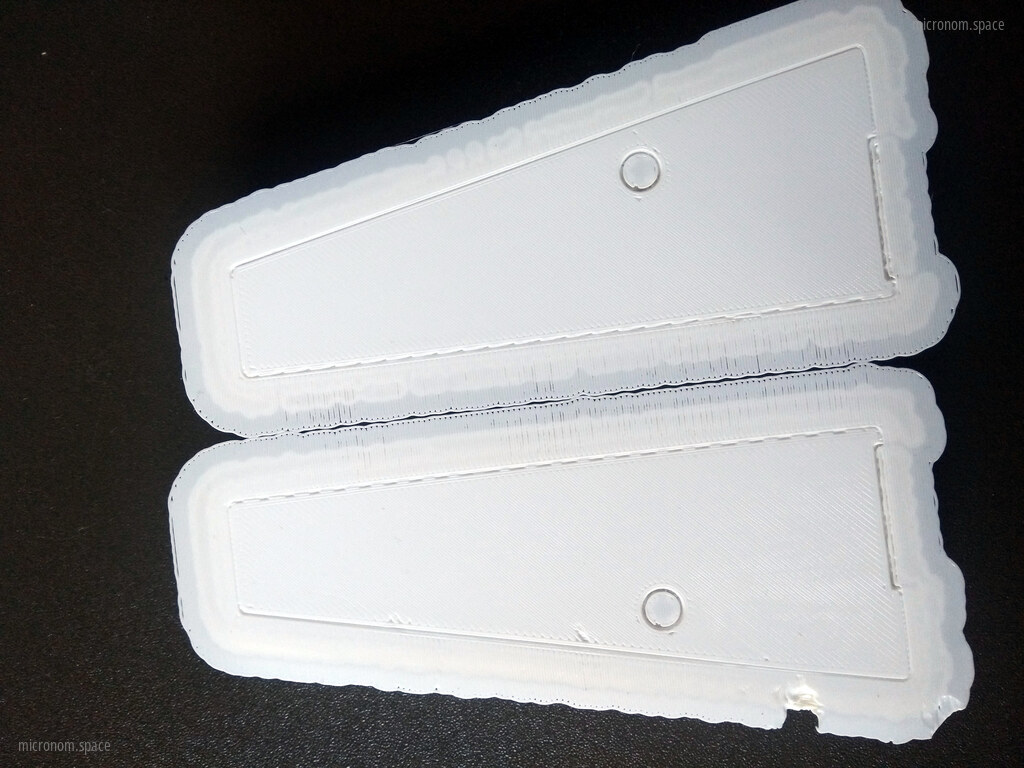

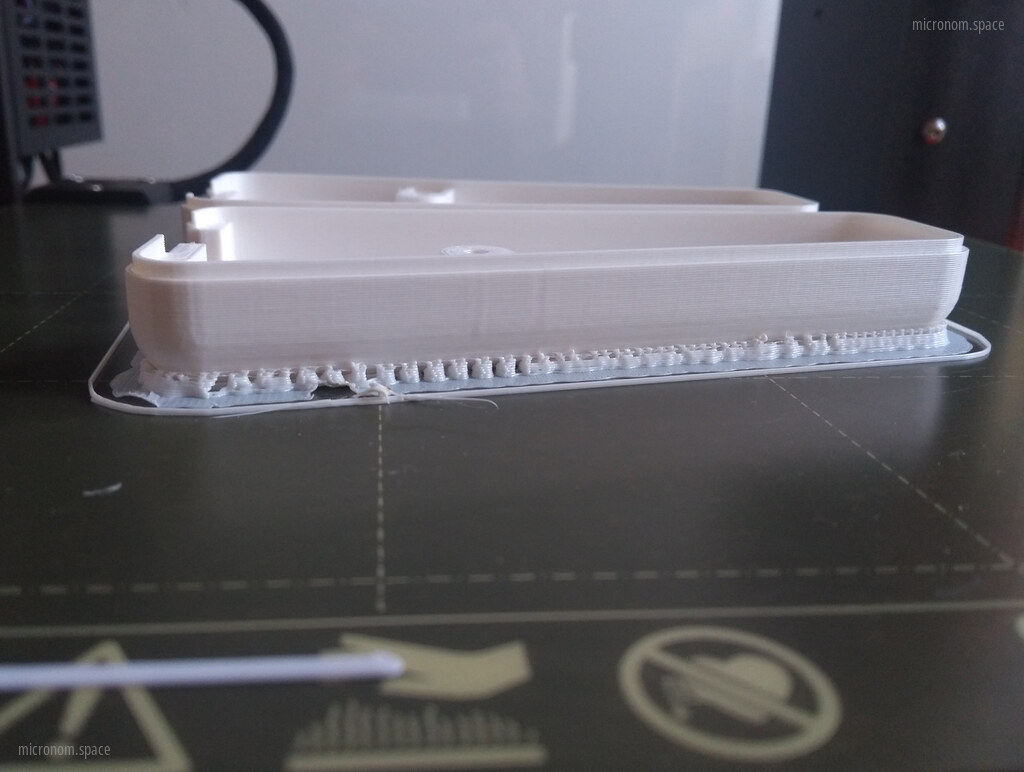

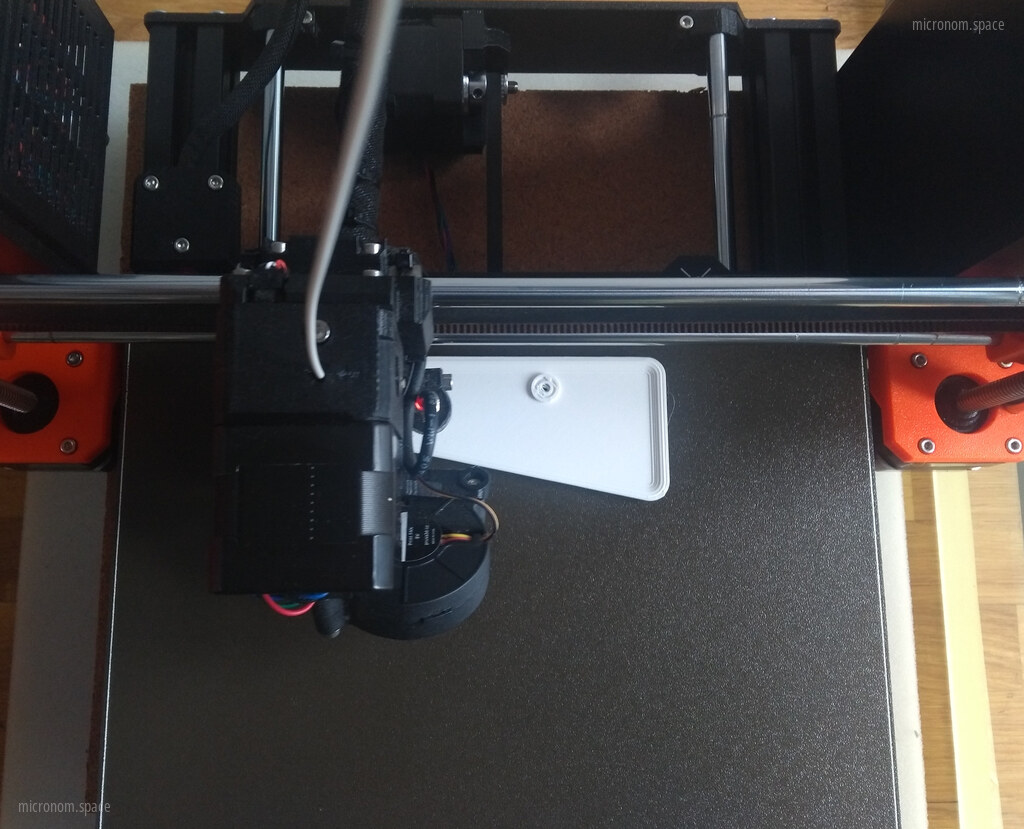

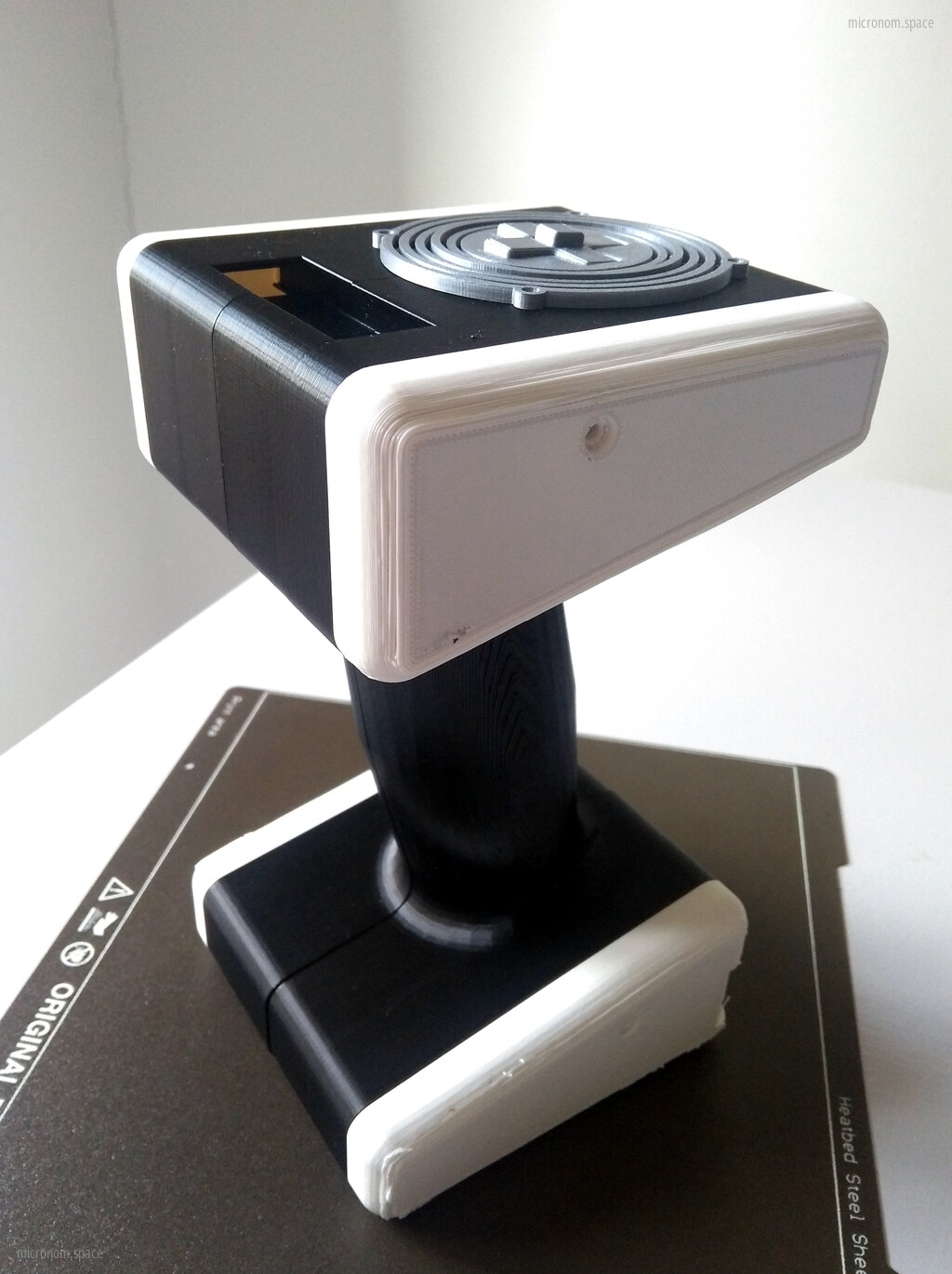

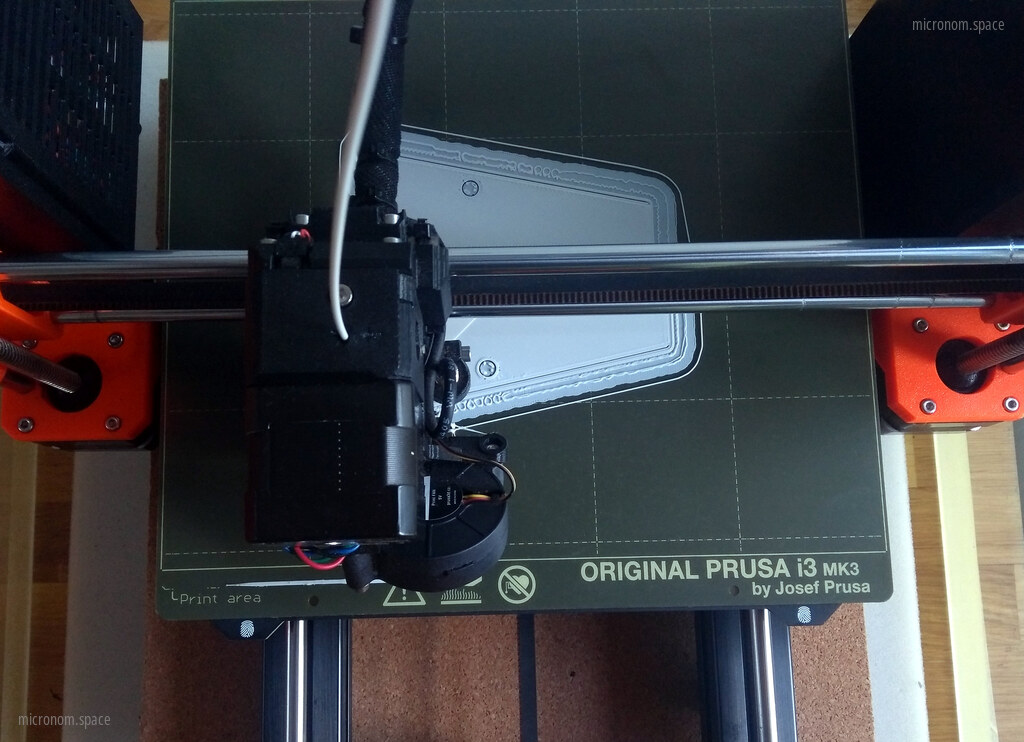

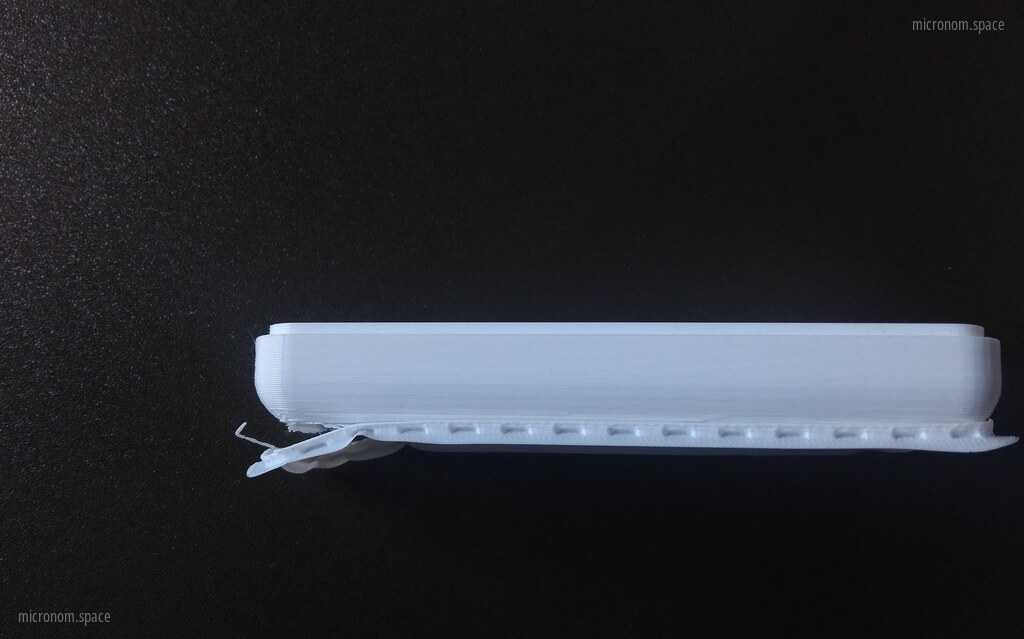

micronom side micronom supports micronom side-by-side micronom side-by-side-supports micronom side-by-side-final micronom smooth micronom sexy-shot-I micronom sexy-shot-II

Cover the slot!#

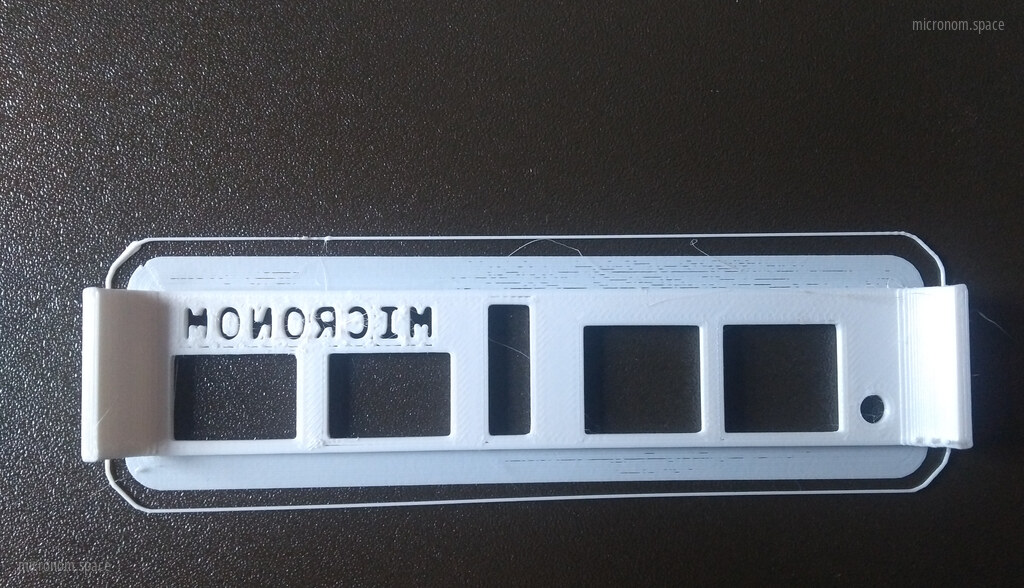

The just finished slot cover is the last part of the outer shell in its minimal setup. In my opinion, it would be possible without the printing of the brim.
Once again, it fits.

That is really, really impressive.

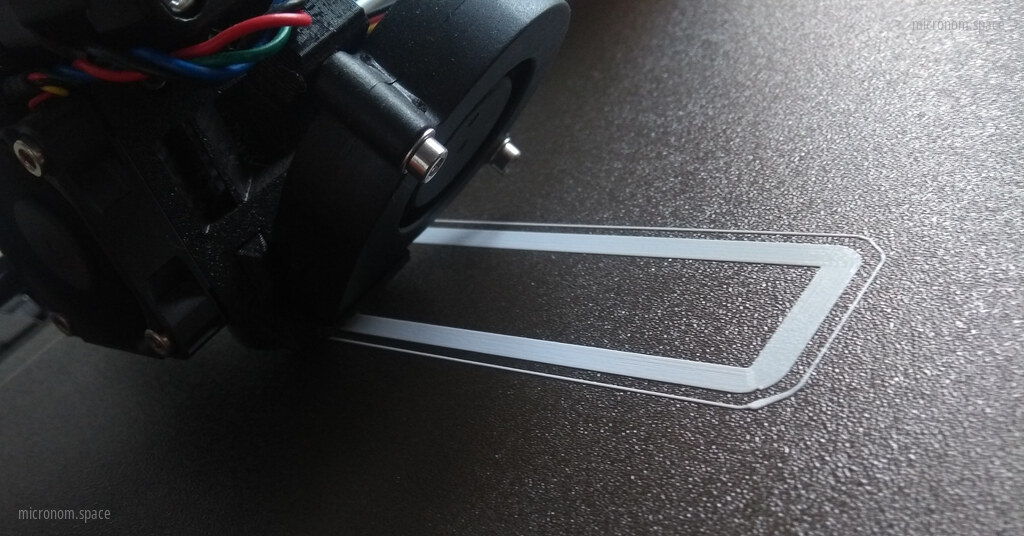

printing the brim slot cover

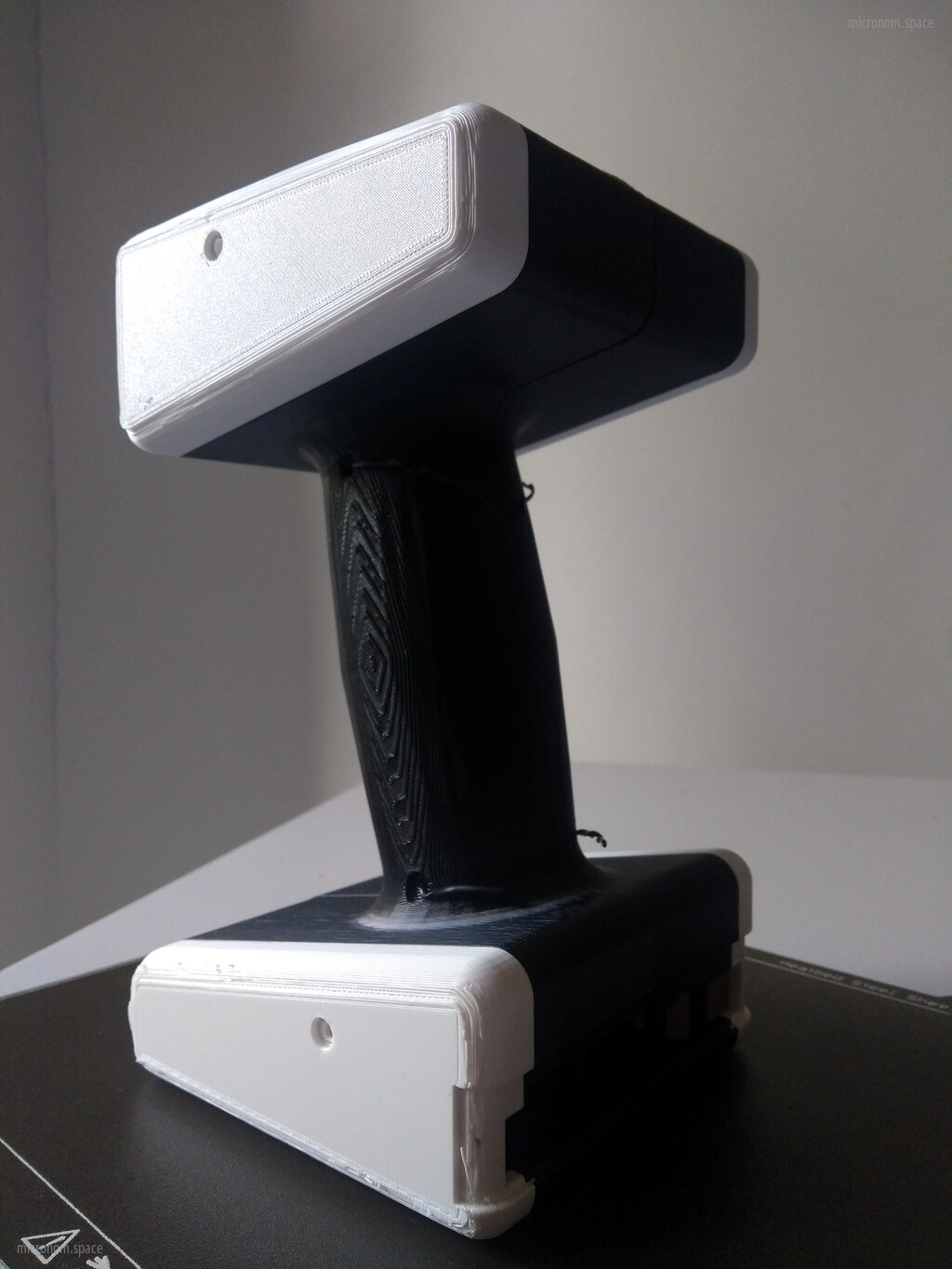

And now enjoy our sexy final shot.

micronom with slot cover

Thanks#

Thank you so much for following the story the whole way through.

Kometa* My dream comes closer to life, my shell is born, my soul wants to serve, my body wants to move.
